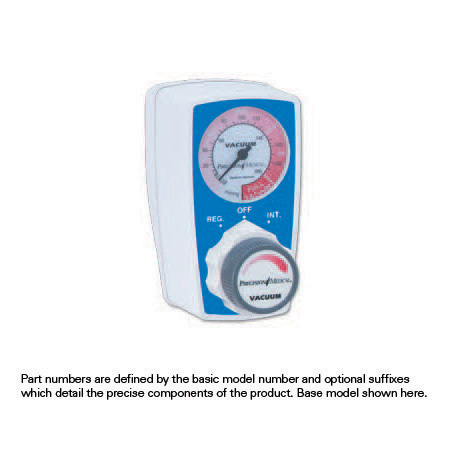

The unique modular design makes repair a breeze for any biomed or central supply department. The unit is made up of six (6) easy-to-replace modular components. Unlike the normal plastic inlet and outlet connections on most units, the cast metal backplate connections are extremely durable, thereby saving unnecessary repair costs. As a result of its modular design, the unit is 25-50 percent smaller than other suction regulators making it the product of choice for crowded wall and rail areas. The case is made of strong ABS plastic. It features a smooth surface with rounded corners making cleaning easy. The case also houses the gauge for extra protection. The large control knob with its three (3) easy-to-read settings make vacuum adjustments simple, even in emergency situations.

Specifications:

• Bottom Connection (inlet) - 1/8 inch NPTF
• Gauge Range: 0-300mmHg - Full Vacuum
• Gauge Accuracy:
  Analog: ± 5% of Max
  Digital Gauge: ± 1% of Full Scale
  Analog Gauge: ± 5% of MAX within ref. indicator
• Maximum Vacuum:
  REG. Mode @ Full Vac - 396 mmHg
• Weight: 1.1 lbs. (.48 kg)
• Dimensions: 3.7 in. (9.4 cm), 2.8 in. (7.1 cm), 5.2 in. (13.2 cm)
