HMEFs

Curaplex Heat Moisture Exchange (HMEF) Aero-Sat Filters. Features: * Moisture output (mg/L @ TV(mL)): 30@1000 * Flow Resistance (cmH2O @ L/min): 2.45 @ 60 * Dead space 46.2 mL * Weight: 33.2g * Tidal volume: 150-1000mL * Media: HME Paper/Electrostatic Filter * Port: Yes * Bacterial Efficiency: 99.999% * Viral Efficiency: 99.99%

This Elliptical Filter with Lip provides a high level of cross contamination efficiencies (99.99%) agains viruses and bacteria. It is an elliptical filter that features a”lip grip”.: Features: * 99.99% efficiency * with Lip Grip * Outer Diameter 38.8mm * Inner Diameter 34.5mm

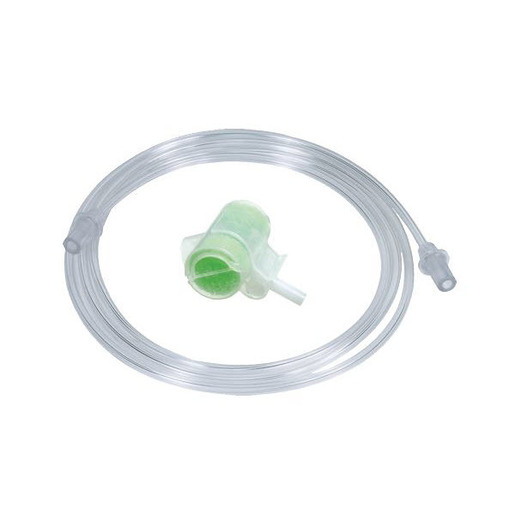

The Hydro-Trach™ T is a heat and moisture exchange device for use on tracheotomized patients. It is designed for use with spontaneously breathing patients to reduce loss of heat and moisture during respiration. Features: * Clear housing for easy visual inspection * Clipped suction port for easier suctioning without device removal * Anti-occlusion mechanism allows the HME element to partially dislodge * Small and lightweight * Available with or without a swivel tube connector * Available with or without oxygen tubing Specifications: * Moisture Loss: 13.2mg H2O/L * Calculated Moisture Return: 26mg H2O/L * Resistance at 30L/min: 0.3 cm H2O * Resistance at 60L/min: 0.6 cm H2O * Compressible volume: 17 ml * Weight: 6 to 8g * Connectors: 15ID * Minimum tidal volume: >60ml All quoted performance figures are mean values.

Heat moisture exchangers with various options.

Inter-Therm™ >99.998% Filtration Efficiency HMEF, with Luer Lock Port

The Intersurgical range of Heat and Moisture Exchanging Filters (HMEFs) combines the filtration efficiency of dedicated breathing filters with optimum moisture return provided by the addition of an HME element. These are designed for use at the patient connection. Specifications: * Moisture loss: 9.3 to 9.9mg H2O/L * Calculated moisture return: 28.9 to 29.5mg H2O/L * Filtration efficiency: > 99.99% * Resistance to flow: * 30L/min: 1.0 to 1.2cm H2O * 60L/min: 2.4 to 2.5cm H2O * Compressible volume: 65 to 66mL * Weight: 42 to 43g * Connectors: 22ID – 22OD/15ID * Minimum tidal volume: > 200mL * Accessories available: * Flextube™ * Flexible catheter mount * Luer Lock Port

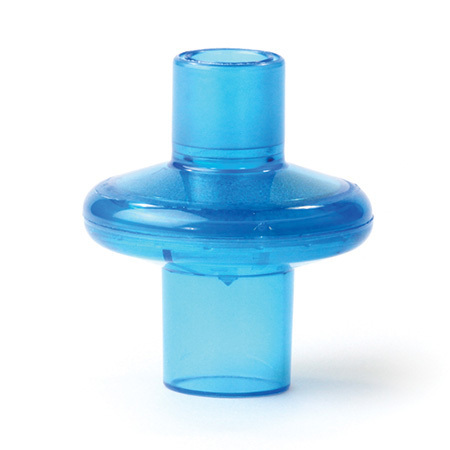

Heat and Moisture Exchangers exhibit low resistance to flow and high moisture output in ventilated or spontaneously breathing patients.Features: * Efficient heat and moisture recovery * ISO standard tapered ends to assure a consistent leak-free seal

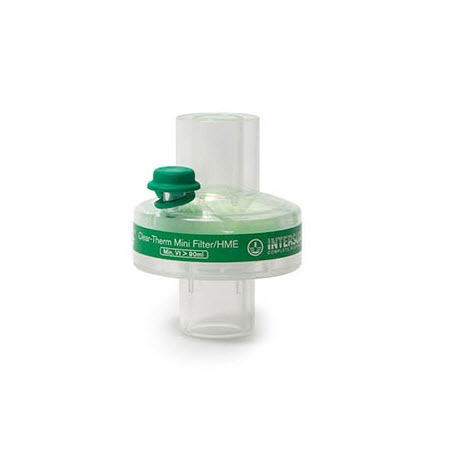

Designed with a rounded ergonomic polypropylene housing, Clear-Therm HMEF products represent an optimal combination of performance and cost-effectiveness. The Clear-Therm HMEFs come as a mini or a micro size.

Humid-Vent Filters are high-performance heat and moisture exchangers (HMEs) that are coupled with hydrophobic bacterial/viral breathing filters. In addition to their bacteriostatic properties, a high level of protection is provided by a true hydrophobic filter.Thanks to their compact design, lightweight Humid-Vent Filters provide excellent heat and humidification output combined with very low dead space. Available in Light, Compact, Small and Pedi versions, the Humid-Vent filter range is suitable for the most diverse applications in anaesthesia and the ICU. The Humid-Vent Filter Compact The Humid-Vent Filter Compact is the third generation of combined HME/filter and is the ideal solution for use in the ICU and in anesthesia applications. Humid-Vent Filter Small The Humid-Vent Filter Small is small, extremely lightweight and particularly versatile. It is ideal for use with larger children and adults undergoing anesthesia. It offers adult performance in a child-sized format (dead space 27 ml) with a tidal volume of up to 1000 ml. Humid-Vent Filter Pedi Developed for children receiving anesthesia, or in the ICU, the Humid-Vent Filter Pedi can be used for tidal volumes from 50 ml up to 250 ml.

This Heat Moisture Exchanger Filter is the optimal choice for enhancing the effectiveness of any breathing system, with bacterial/viral filtration efficiencies in excess of 99.9% and high moisture retention characteristics. Features: * Luer gas sampling ports * ISO-standard connections for secure, leak-resistant attachment to breathing systems * A true hygroscopic condensing humidifier (HCH) for maximal performance without potentially harmful chemicals

Humid-Vent Filters are high-performance heat and moisture exchangers (HMEs) that are coupled with hydrophobic bacterial/viral breathing filters. In addition to their bacteriostatic properties, a high level of protection is provided by a true hydrophobic filter. Thanks to their compact design, lightweight Humid-Vent Filters provide excellent heat and humidification output combined with very low dead space. Features: * Designed to accommodate tidal volumes from 250-1500 mL * Weighs only 30 grams * 2 configurations to meet varying clinical needs of anesthesia and intensive care patients * 30 mg/L moisture output at 1200-mL tidal volume * Bacterial efficiency 99.9999%; viral efficiency 99.99+%

The HUMID-VENT® Filter Angled Compact HME is characterized by optimal moisture output coupled with low resistance to flow, cross-contamination protection from outstanding filtration efficiency, low dead-space and light weight.Features: * Compact, angled design * Gas sampling connector * 150ml to 1000ml tidal volumes * Provides over 30 mgH2O/L @ Vt 1.0L * 1.8, 60 LPM resistance (cm H20) * 15mm male x 15mm f / 22mm connection * Latex-, phthalate-, and PVC-free

This Heat Moisture Exchanger Filter is the optimal choice for enhancing the effectiveness of any breathing system, with bacterial/viral filtration efficiencies in excess of 99.9% and high moisture retention characteristics.Features: * Luer gas sampling ports * ISO-standard connections for secure, leak-resistant attachment to breathing systems * A true hygroscopic condensing humidifier (HCH) for maximal performance without potentially harmful chemicals

Heat Moisture Exchanger Filter HMEF, Pall BB25A, with Elbow 6224

Breathing filters are the optimal choice for enhancing the effectiveness of any breathing system. With bacterial/viral filtration efficiencies in excess of 99.9% and high moisture retention characteristics, offers the right product, for the right application, for the right price. * Vt: 20mL * Moisture Output: 28mgH20/L @20mL * Resistance to Flow: 1.25cmH20 @ 5Lpm * Bacterial/Viral Filtration: 99.8/99.6% * Dead Space: 4.0mL
