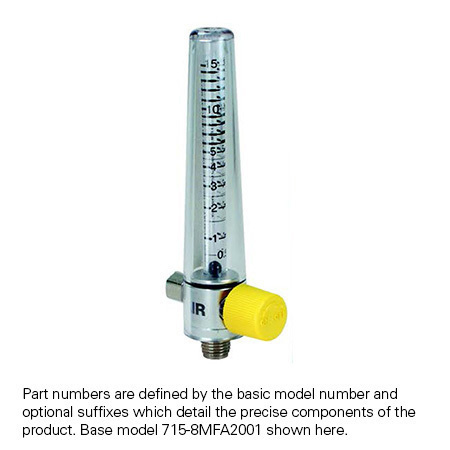

The compact flowmeters polycarbonate housing extends over the lightweight aluminum body providing superior durability. The housing is impervious to chemical solutions normally used in a clinical setting. The state of the art housing incorporates a white background that makes the flow settings easier to read. The contemporary design results in a smaller unit that fits more easily into space-cramped wall rails. Unlike side mounted knobs which are susceptible to damage, the flow control knobs are on the front of the flowmeter in clear sight of the operator. The flowmeters use black glass flow indicator balls. The properties of black glass, superior sphericity and exceptionally uniform density, insure that the flowmeter is more accurate then flowmeters utilizing plastic floats. Variety of options available.

Specifications:

• Scale: 0-15 LPM
• Increments:
  0.5 LPM from 0.5 to 5 LPM
  1 LPM from 5 to 15 LPM
• Accuracy:
  ±0.25 LPM from 0.5 to 5 LPM
  ±0.5 LPM above 6 to 15 LPM
• Flush Flow: 40-60 LPM
