Bio-Med Devices

Adult BiPAP circuit includes holding arm and 22 mm x 22 mm adapter.

These test lungs are available in 3 different - Infant, Child, Adult - sizes with resistance straps. Features: * Available with resistance strap * Sizes * Infant (64mL) * Child (500mL) * Adult (1L) * With 15mm Male or 22mm Female fitting

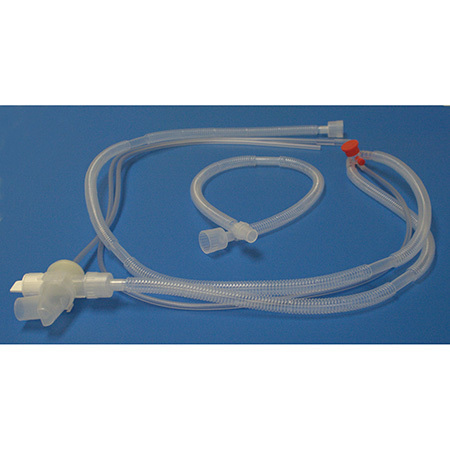

Infant breathing circuit is MRI compatible and disposable.

The NEO2 Blend series represents the ideal blender model for the NICU application. It comes with a 0-15 lpm flow meter close mounted to the left hand side (this makes an perfect spot to attach a resuscitation bag). The right side comes installed with either a 0-1, 0-3.5, or 1-15 lpm flowmeter (depending on the model you choose), which allows for use with a nasal cannula, CPAP, etc. The right side flow meter is installed on an integrated bleed control switch: when the right side is not needed, the bleed flow (3 lpm) can be disabled by pushing and rotating the flow meter forward when needed, simply return it to the upright position and use as desired. Specifications: * Oxygen %: 21 - 100% * Number of Ports: 2 or 3 * Left Flowmeter Range: 3-15 lpm (1-15 if bleed is on) * Right Flowmeter Range: 0-1.0, 0-3.5, 1-15 (with 3 lpm bleed on-flowmeter in upright position) * Accuracy: +/- 3% full scale * Bleed Flow: 3 lpm (when active) * Size: 8.13 x 6.55 x 4.60 in. (20.65 x 16.64 x 11.68 cm.) * Weight: 4.05 lbs. (1.84 kg.)

Air/Oxygen High/Low Flow Blender Specifications: * Flow Range: 2 to 120 LPM * Input Port Fittings: DISS * Output Port Fittings: DISS * Output Port Flow Range: * Left – 15-120 LPM (no bleed) * 2-108 LPM (with bleed) * Bottom – 15-120 LPM (no bleed) * 2-108 LPM (with bleed) * Right – 2-108 LPM (with bleed) * Bleed for Flows <15 LPM: 12 LPM * Size: 4.8W x 5.4H x 4.6D inches (12.2W x 13.7H x 11.7D cm) * Weight: 3.3 lbs. (1.5 kg)

Features: * Exhalation valve with 22mm plug and drip cap. * End to the left is plugged. * End to the right is 22mm OD. * Diaphragm cap fits 1/8in ID tube. * Drip cap swivels 360° and is 22mm OD.

A 0-70 lpm flow meter is close mounted to the left side, and the right side features a 0-15 lpm flow meter that is still mounted closer than a typical flow meter mounted to a standard DISS port would be. This configuration provides the high range for pediatric and adult use, as well as the low range for neonatal use, and does so in a very compact blender. It is also as gas efficient as a High/Low Flow model can be since the bleed only needs to be activated when the Low Flow application is in use. Specifications: * Oxygen Concentration Range: 21 to 100% * Number of Ports: 3 (2 occupied by flowmers plus a bottom port) * Left Flowmeter Range: 15-70 lpm (2-70 if bleed flow is on-right flow meter is in upright position) * Right Flowmeter Range: 2-15 lpm * Accuracy: +/- 3% full scale * Size: 7.98W x 6.64H x 4.56D inches (20.3W x 16.9H x 11.6D cm) * Weight: 3.17 lbs. (1.44 kg)

Deluxe, MRI compatible, E-Cylinder oxygen regulator features include: * Unique DISS Input Fitting * Built-in Pressure Gauge * Built-in 0-15 LPM Flow Meter * Built-in Permanent O-ring Tank Washer * MRI Compatible * Preset to 50 PSI (344.7 kPa)

Bracket has stop pins in the slots to prevent blender from sliding through.

Disposable exhalation valve features include: * End to the left is plugged * End to the right is 22 mm OD * Diaphragm cap fits 1/8 inch ID tube

Adult breathing circuit includes 22 mm x 22 mm adapter and 22 mm x 15 mm elbow adapter.

Infant breathing circuit is MRI compatible and disposable.

Deluxe, MRI compatible, E-Cylinder air regulator features include: * Unique DISS Input Fitting * Built-in Pressure Gauge * Built-in Permanent O-ring Tank Washer * MRI Compatible * Preset to 50 PSI (344.7 kPa)

MRI Air/Oxygen High/Low Flow Blender Specifications: * Flow Range: 2 to 120LPM * Input Port Fittings: DISS * Output Port Fittings: DISS * Output Port Flow Range: * Left – 15-120 LPM (no bleed) * 2-108 LPM (with bleed) * Bottom – 15-120 LPM (no bleed) * 2-108 LPM (with bleed) * Right – 2-108 LPM (with bleed) * Bleed for Flows <15 LPM: 15 LPM * Size: 4.8W x 5.4H x 4.6D inches (12.2W x 13.7H x 11.7D cm) * Weight: 3.3 lbs. (1.5 kg)

MRI Air/Oxygen Low Flow Blender Specifications: * Flow Range: 2 to 30LPM * Input Port Fittings: DISS * Output Port Fittings: DISS * Output Port Flow Range: * Left – 3-30 LPM (no bleed) * 0-30 LPM (with bleed) * Bottom – Plugged * Right – 0-30 LPM (with bleed) * Bleed for Flows <3 LPM: 3 LPM * Size: 4.8W x 5.4H x 4.6D inches (12.2W x 13.7H x 11.7D cm) * Weight: 3.2 lbs. (1.2 kg)

Infant pneumotach designed for use with Crossvent 2i and Crossvent 2i+.

Infant breathing circuit is MRI compatible and disposable.

Oxygen supply hose, MRI compatible, 10 ft length, DISS female x DISS female both ends, for IC-2A/MRI ventilator

Kit Adapter Infant Heated Wire 20/CS

Hose kit for MRI blender. Includes 10 ft Oxygen hose, 10 ft air hose, both DISS female to DISS female connections, and male to male DISS coupler for Oxygen hose.

Infant pneumotach with connector designed for use with Crossvent 2+.

Adult breathing circuit includes 22 mm x 22 mm adapter and 22 mm x 15 mm elbow adapter.

Infant breathing circuit is MRI compatible and disposable.

Infant breathing circuit is MRI compatible and disposable.
